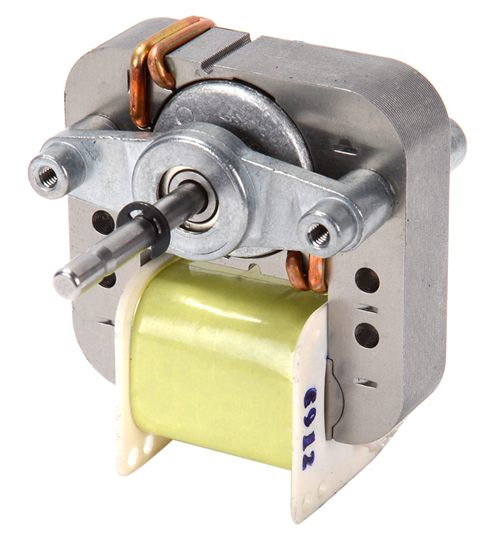

罩極電機定子組件由鐵芯和主副繞組組成，副繞組即短路環，其功能是產生磁勢，并在氣隙中形成旋轉磁場。轉子由鐵芯和鼠籠導條組成，鼠籠導條就是轉子繞組的導體，其功能是當它切割氣隙旋轉磁場時產生感應電動勢，形成感應電流和電磁轉矩，實現電能和機能的轉換。 Single Phase Shaded Pole motor is mainy composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
罩極電機定子組件由鐵芯和主副繞組組成，副繞組即短路環，其功能是產生磁勢，并在氣隙中形成旋轉磁場。轉子由鐵芯和鼠籠導條組成，鼠籠導條就是轉子繞組的導體，其功能是當它切割氣隙旋轉磁場時產生感應電動勢，形成感應電流和電磁轉矩，實現電能和機能的轉換。
Single Phase Shaded Pole motor is mainy composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
產品特點/Characteristics
低噪聲、運行可靠、壽命長、無電磁干擾、免維護。
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
產品應用/Application
烤箱、微波爐、電壁爐、空調、冰柜、洗衣機、暖風機、換氣扇、加濕器、水泵、空氣清新器、抽油煙機。
Ovens, microwave ovens, air- conditioners, freezers, washing machines, fan heaters, ventilators,humidifiers, water-pumps, air-fresheners, kitchen hood.
產品系列/Series
YJ48，YJ58，YJ61，YJ62，YJ84
產品通用特性參數/Product General Performance Parameters
| 電壓/Voltage | 100-240VAC |
| 功率/Frequency | 5-100W |
| 頻率/Power | 50/60HZ |
| 絕緣等級/Insulation Class | A/E/B/F/H |
| 噪音/Noise | <43Db(A) |
| 壽命/Life | 5000-10000Hours |
| 鐵芯厚度/Core Thickness | 8-40mm |
| 軸徑/Shaft Diameter(mm) | Ф2.5，Ф3.17，Ф4.0，Ф4.6，Ф5.0，Ф5.5，Ф6.0，Ф6.35 |
額定電壓/Rated Voltage:100-240VAC
堆疊高度/amination:12-40mm

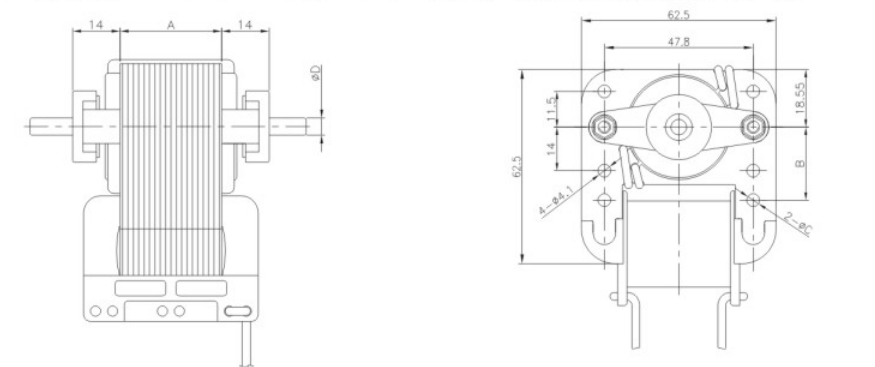

產品尺寸/Size:84x67mm
時間壽命/Life:5000-10000Hours
典型應用/Application:抽油煙機 Kitchen Hood

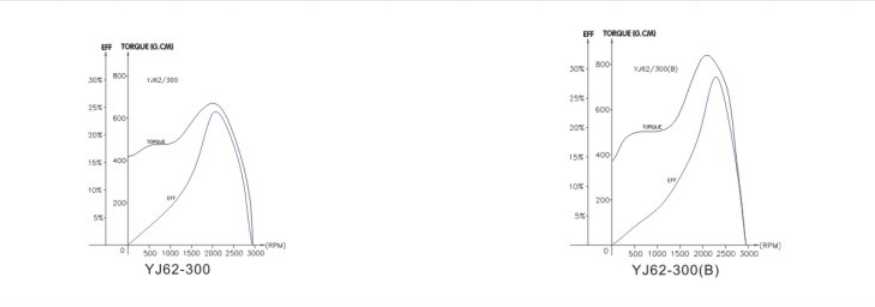

| 型號/MODEL | 尺寸/DIMENSIONS | 額定電壓/RATED VOLT | 額定頻率/RATED Hz | 空載FREE LOAD | 負載/ON LOAD | |||||||
| 電流/CL JRRENT A | 轉速/SPEED R.P.M. | 輸入功率/INPUT W | 輸出功率/OUTPUT W | 轉速/SPEED R.P.M. | 力矩/TORQUE G.CM | 電流/CURRENT A | ||||||
| YJ62/300 | 25 | 23.5 | 4.1 | 230 | 50 | 0.45 | 2930 | 55 | 15 | 2400 | 600 | 0.55 |
| YJ62/300 | 25 | 19.2 | 5.1 | 230 | 50 | 0.45 | 2930 | 55 | 15 | 2400 | 600 | 0.55 |
| YJ62/300 | 25 | 27.5 | 4.1 | 230 | 50 | 0.45 | 2930 | 55 | 15 | 2500 | 600 | 0.55 |
| YJ62/300(B) | 30 | 23.5 | 4.1 | 230 | 50 | 0.5 | 2940 | 65 | 19 | 2500 | 750 | 0.6 |
| YJ62/300(B) | 30 | 19.2 | 5.1 | 230 | 50 | 0.5 | 2940 | 65 | 19 | 2500 | 750 | 0.6 |
| YJ62/300(B) | 30 | 27.5 | 4.1 | 230 | 50 | 0.5 | 2940 | 65 | 19 | 2500 | 750 | 0.6 |
